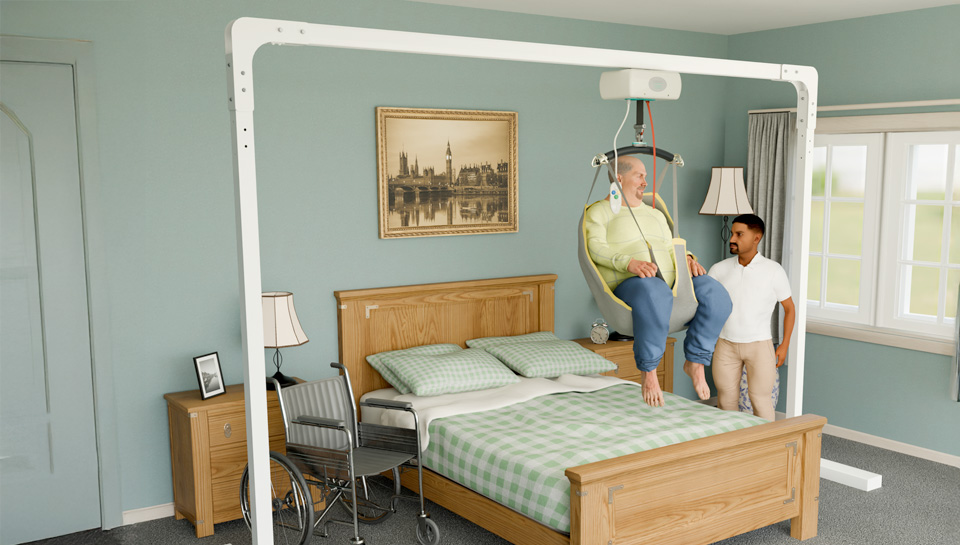

Mackworth SteadyTrack Patient Lift System

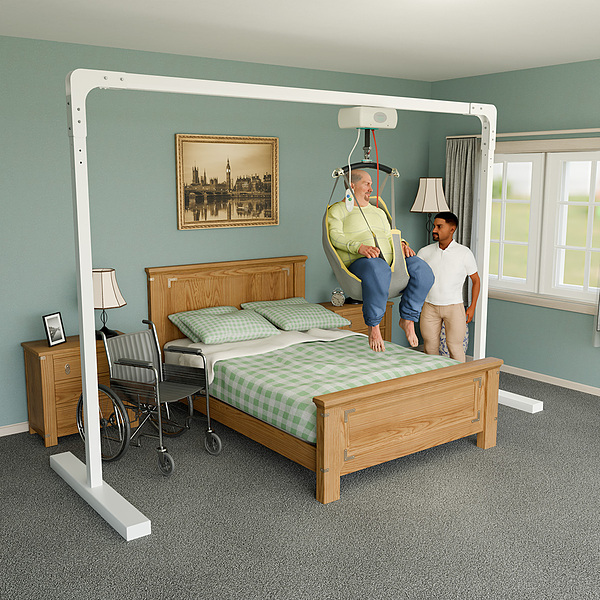

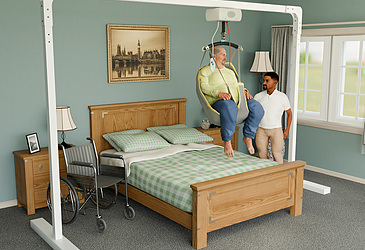

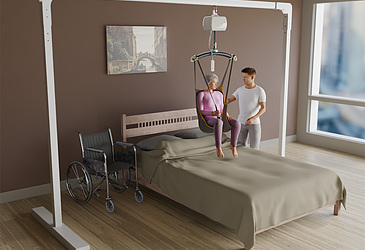

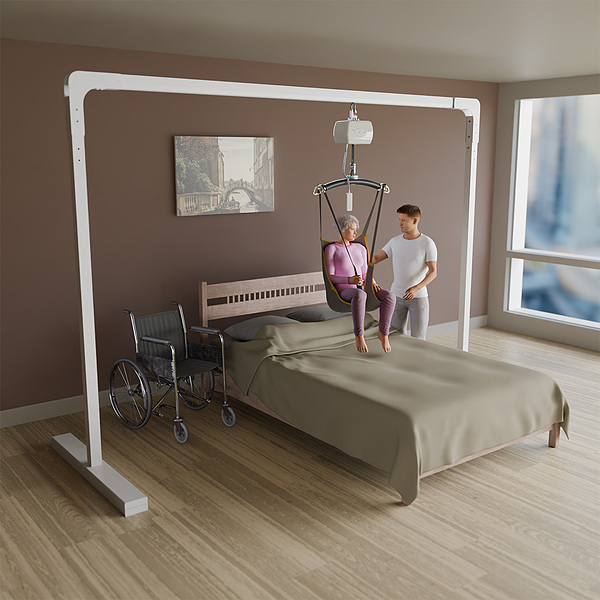

The SteadyTrack is a safe, high performance and portable free-standing lift stand which, together with a track and a lift unit, functions as a stationary lift system. The SteadyTrack allows customers to safely adjust the length of track up to 22'.
It is made of aluminum, which makes it light in relation to its large lifting capacity. The design is both simple and practical and makes SteadyTrack one of the sturdiest freestanding lift stands on the market.
SteadyTrack is very easy to assemble and disassemble and therefore easy to move to locations where there is a need for lifting. You can create many safe and flexible lifting solutions that are ideally adapted for all settings and users.

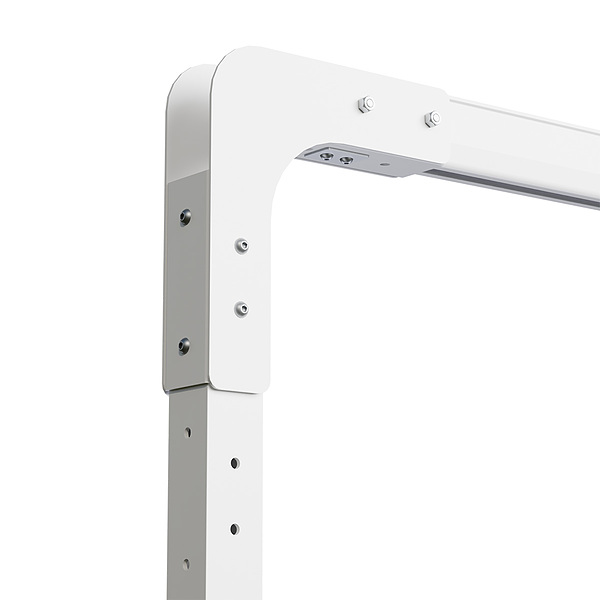

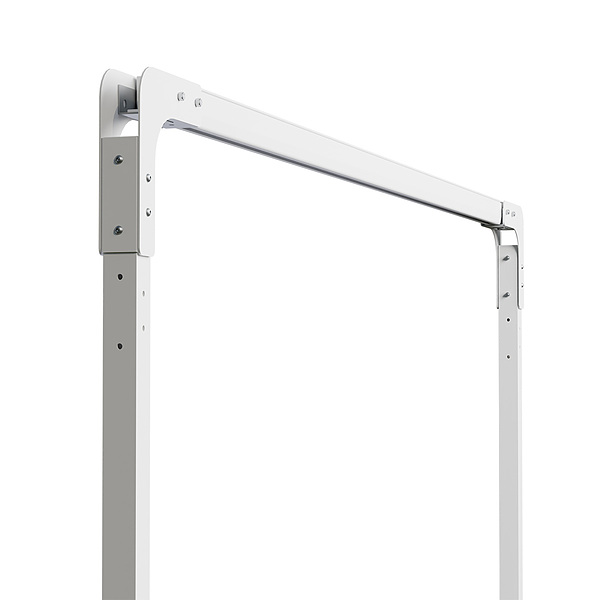

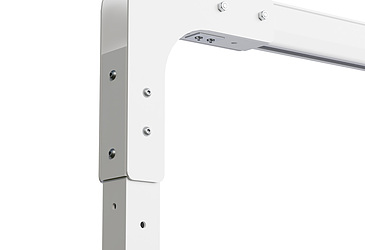

Photo Gallery
- Features
- Easy & Quick Assembly - Avoid fixed installation and related costs.
- Multiple Length Option - Accommodates any length up to 22'.
- Weight Capacity - Transfer patients up to 600 lbs.
- Lift Options - Available for use with Mackworth portable and fixed lifts.
- Movement Confidence - Providing steady, safe, and comfortable transfers for both patient and caregiver.
- Specifications

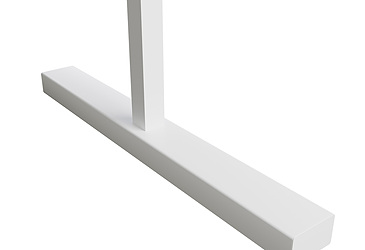

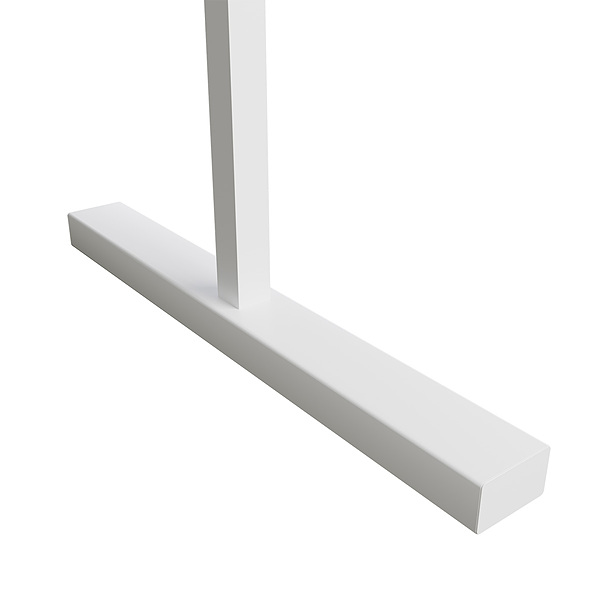

SteadyTrack Specifications Overall Height 85” – 93” Lifting Range, Height: 73.5” – 81.5” Overall Length: *93.35” – 275.60” Lift Travel Length: *74.5” – 177.5” Distance Between Vertical Supports: *99.25” – 202” Distance (Inside) between Post Bases: *81.10” – 263.99” Base Length: 45" Base Width: 6” * Depending on track length. Available track lengths are 95”, 144”, 198” and 264". Please Note: The 144”, 198” and 264" length are higher profile for added strength.
- Manuals
- Testimonials
"The SteadyTrack from Mackworth has become my go-to as a freestanding overhead lift. It provides flexibility with track length, can accommodate fixed and portable motors and is easy to set-up. Highly recommend taking a look at the Mackworth SteadyTrack."
Nathan M., Access Sales
National Seating & Mobility (NSM)
